第一步：准备数据

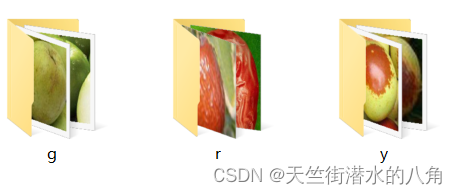

3种水果成熟度数据：青红黄，总共有735张图片，每个文件夹单独放一种成熟度数据

第二步：搭建模型

本文选择一个简单cnn网络，其网络结构如下：

Model: "model_1"
_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
input_1 (InputLayer)         (None, 80, 128, 3)        0
_________________________________________________________________
conv0 (Conv2D)               (None, 26, 42, 32)        896
_________________________________________________________________
dropout_1 (Dropout)          (None, 26, 42, 32)        0
_________________________________________________________________
bn0 (BatchNormalization)     (None, 26, 42, 32)        128
_________________________________________________________________
activation_1 (Activation)    (None, 26, 42, 32)        0
_________________________________________________________________
max_pool_1 (MaxPooling2D)    (None, 13, 21, 32)        0
_________________________________________________________________
conv1 (Conv2D)               (None, 4, 7, 4)           1156
_________________________________________________________________
dropout_2 (Dropout)          (None, 4, 7, 4)           0
_________________________________________________________________
bn1 (BatchNormalization)     (None, 4, 7, 4)           16
_________________________________________________________________
activation_2 (Activation)    (None, 4, 7, 4)           0
_________________________________________________________________
max_pool_2 (MaxPooling2D)    (None, 2, 3, 4)           0
_________________________________________________________________
flatten_1 (Flatten)          (None, 24)                0
_________________________________________________________________
dense (Dense)                (None, 3)                 75
=================================================================
Total params: 2,271
Trainable params: 2,199
Non-trainable params: 72

第三步：训练代码

1）损失函数为：交叉熵损失函数

2）训练代码：

    model.fit_generator(generate_arrays_from_file(lines[:num_train], batch_size, IMG_H, IMG_W),
                        steps_per_epoch=max(1, num_train // batch_size),
                        validation_data=generate_arrays_from_file(lines[num_train:], batch_size, IMG_H, IMG_W, flag=False),
                        validation_steps=max(1, num_val // batch_size),
                        epochs=100,
                        initial_epoch=0,
                        class_weight='auto',
                        callbacks=[checkpoint_period1, reduce_lr, early_stopping, csv_logger])
    model.save_weights(log_dir + 'last1.h5')

第四步：统计正确率

HappyModel_model_logep037-accuracy0.890-val_accuracy0.938.h5正确率高达93.8%

第五步：搭建GUI界面

第六步：整个工程的内容

有训练代码和训练好的模型以及训练过程，提供数据，提供GUI界面代码，主要使用方法可以参考里面的“文档说明_必看.docx”

项目源码下载：

项目源码下载地址：关注WX【AI街潜水的八角】，回复【keras水果成熟度识别】即可下载

整套项目源码内容包含

有训练代码和训练好的模型以及训练过程，提供数据，提供GUI界面代码
