【目标检测】电力设备红外检测数据集4864张YOLO+VOC格式

数据集格式：VOC格式+YOLO格式
压缩包内含：3个文件夹，分别存储图片、xml、txt文件
JPEGImages文件夹中jpg图片总计：4864
Annotations文件夹中xml文件总计：4864
labels文件夹中txt文件总计：4864
标签种类数：21
标签名称:["Arrester body","Arrester voltage equalizing ring","Breaker","Breaker connector","Breaker support insulator","Casing connector","Casing general hat","Casing porcelain sleeve","Casing pressure equalizing ring","Current transformer connector","Current transformer general cap","Current transformer head","Current transformer porcelain sleeve","Current transformer secondary tank","Current transformer voltage equalizing ring","Knife blade","Knife gate connector","Knife gate fixing pin","Knife gate support insulator","Voltage transformer body","Voltage transformer secondary tank"]
标签中文对照：[“避雷器本体”、“避雷器均压环”、“断路器”、“开关连接器”、“制动器支撑绝缘子”、“外壳连接器”、”外壳总帽“、”外壳瓷套“、”套管均压环“、”电流互感器连接器“、”电流互感器总帽”、“电流互感器头部”、”电流变换器瓷套“、“电流变换器二次罐”、“互感器均压圈”、“刀片”、“刀门连接器”、'刀门固定销“、”刀门支撑绝缘子“、”电压互感器本体“、”变压器二次罐“]
每个标签的框数（注意yolo格式类别顺序不和这个对应，而以labels文件夹classes.txt为准）：
Arrester body 框数 = 1288
Arrester voltage equalizing ring 框数 = 1271
Breaker 框数 = 1781
Breaker connector 框数 = 3264
Breaker support insulator 框数 = 1654
Casing connector 框数 = 469
Casing general hat 框数 = 510
Casing porcelain sleeve 框数 = 1208
Casing pressure equalizing ring 框数 = 709
Current transformer connector 框数 = 2284
Current transformer general cap 框数 = 515
Current transformer head 框数 = 1066
Current transformer porcelain sleeve 框数 = 1208
Current transformer secondary tank 框数 = 147
Current transformer voltage equalizing ring 框数 = 6
Knife blade 框数 = 1289
Knife gate connector 框数 = 2429
Knife gate fixing pin 框数 = 289
Knife gate support insulator 框数 = 2410
Voltage transformer body 框数 = 948
Voltage transformer secondary tank 框数 = 910
总框数：25655
图片清晰度（分辨率：像素）：清晰
图片是否增强：否
数据集来源：星码数据城
数据集类型：150m
标签形状：矩形框，用于目标检测识别
重要说明：暂无
特别声明：本数据集不对训练的模型或者权重文件精度作任何保证，数据集只提供准确且合理标注

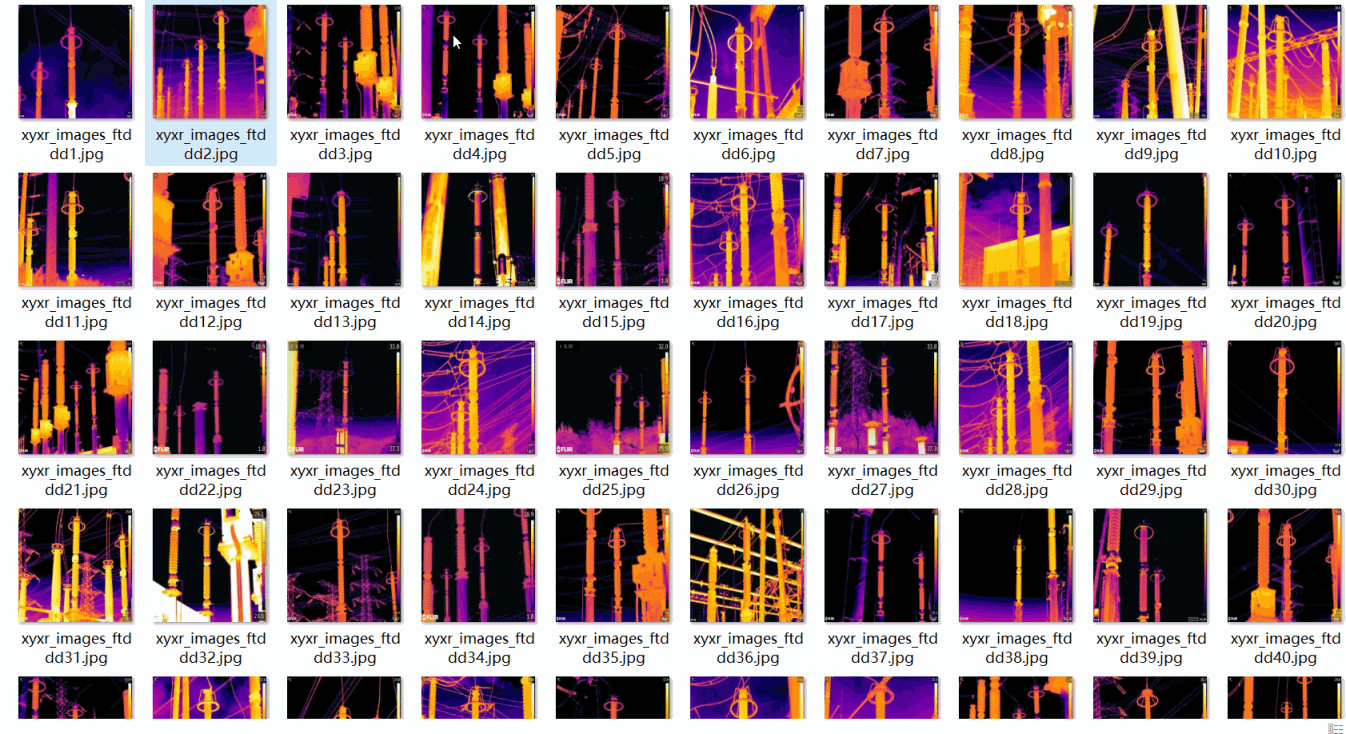

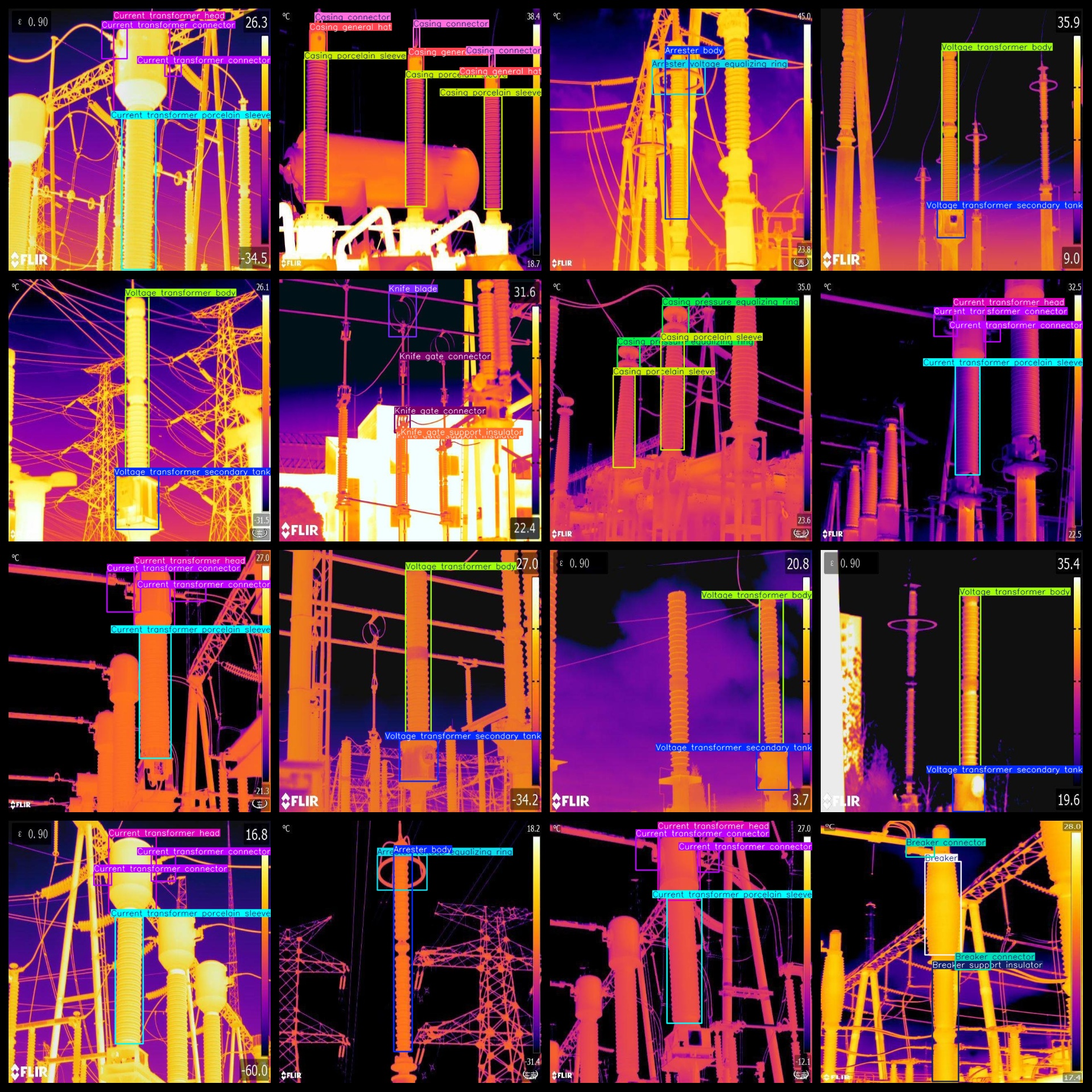

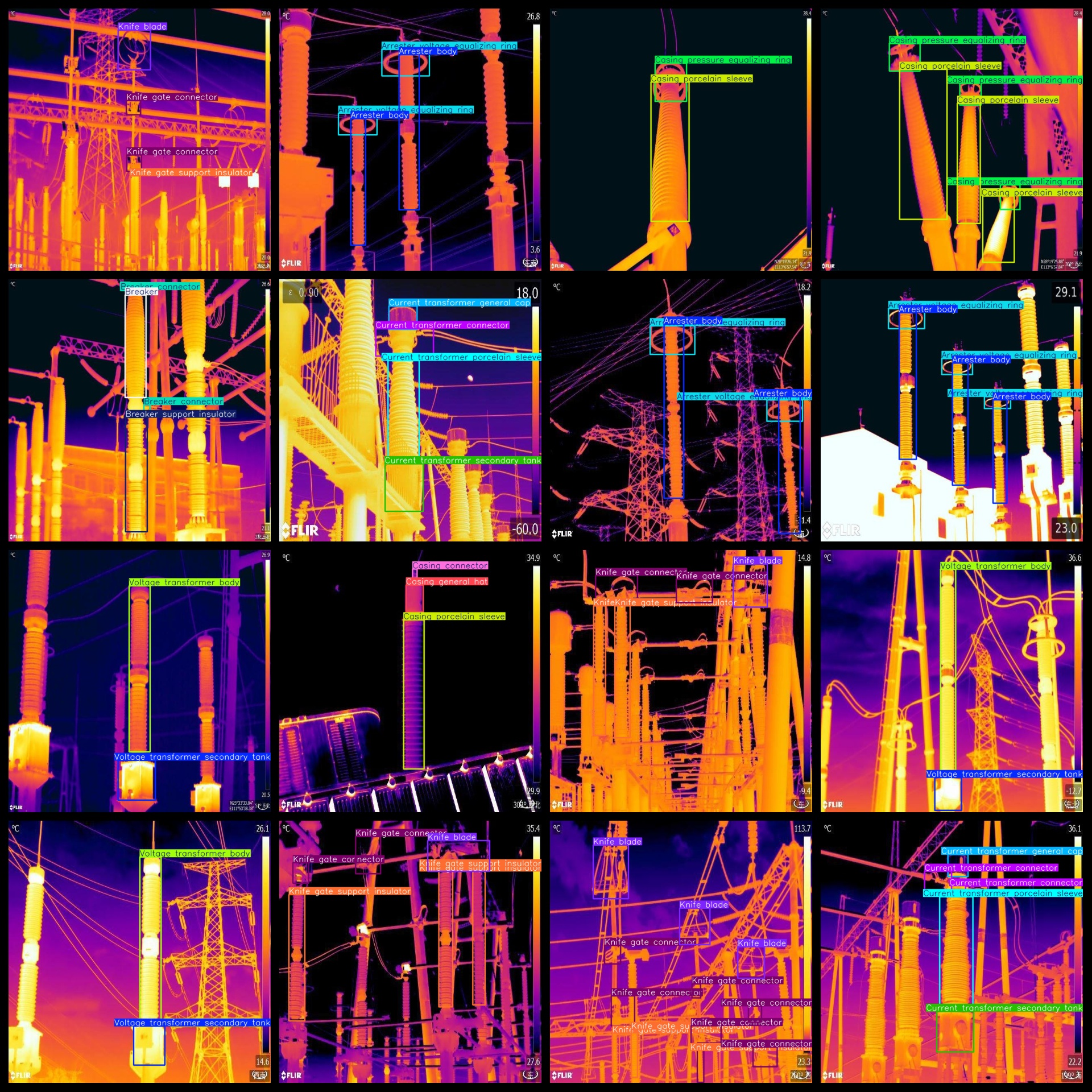

标注示例或图片概览：

数据集下载地址：

https://download.csdn.net/download/lwx666sl/92697732https://download.csdn.net/download/lwx666sl/92697732
