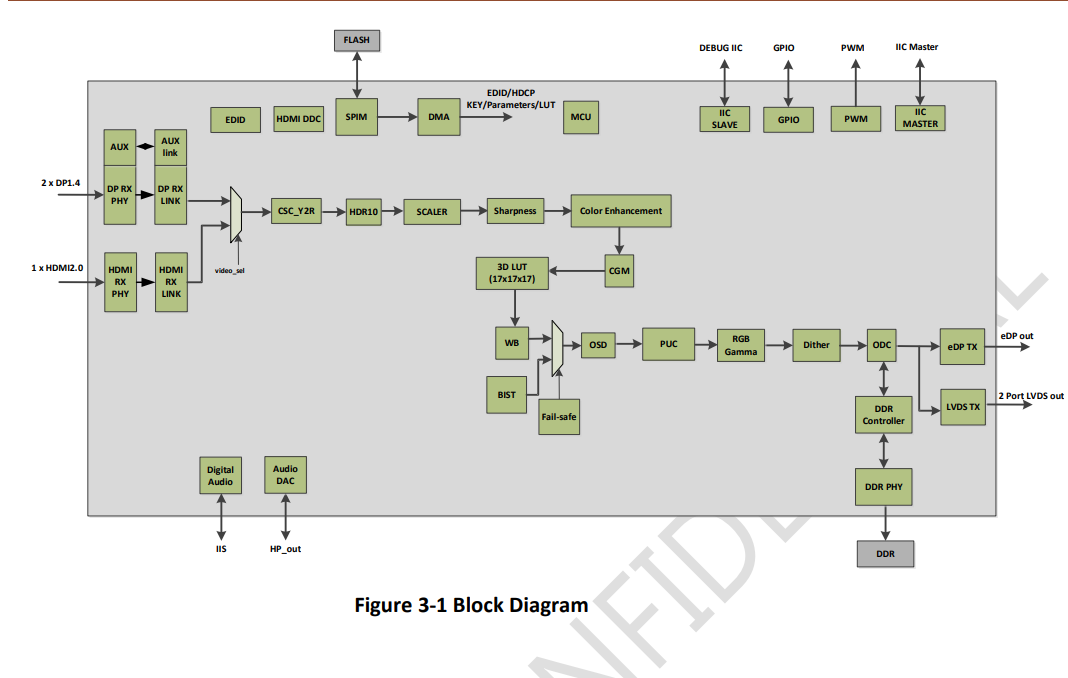

Chipone ICNM7601AD显示器控制器结合了两个符合HDMI 2.0的数字输入接口与HDCP1.4/HDCP2.2，一个DP1.4数字输入接口与HDCP1.4/HDCP2.2，高质量的放大/缩小和缩小引擎，多色屏幕显示 (OSD) 控制器和许多其他功能。

Support Input/output video format up to 2560 x 1440@75Hz, 1920x1080@144Hz with ODC

⚫ Support color depth: input 6/8/10bpc, output 8/10 bpc

⚫ Support LVDS panel output interfaces

⚫ Support customized Power on LOGO

⚫ DisplayPort1.4 receiver － Support 2 ports of DP1.4 receivers － Compliant with DisplayPort standard v1.4 － Up to 4-lanes @5.4Gbps, 2.7Gbps and 1.62Gbps for each port － Support lane swap and P/N swap － Down-spread spectrum supported (0.5% down spread) － Support 1Mbps AUX CH － Only support SST － Support HDCP1.4 and HDCP2.2 － Normal Link training － EDID access through AUX channel － Support DPCD version up to 1.4 － Support Static HDR video

⚫ HDMI2.0 receiver － Support 1 ports of HDMI2.0 receivers － Support data lane swap and P/N swap － Support HDCP1.4 and HDCP2.2 － Maximum TMDS bit rate 6Gbps － Minimum TMDS bit rate 250Mbps － Support HPD output － Support PRBS31 Check for ATE － Support static HDR packet receiving

⚫ eDP1.4 transmitter － Compliant with DisplayPort standard v1.4 and eDP standard v1.4 － Up to 4-lanes @5.4Gbps, 2.7Gbps and 1.62Gbps for each port － Support lane swap and P/N swap － Down-spread spectrum supported (0.5% down spread) － Support 1Mbps AUX CH － Only support SST

⚫ LVDS transmitter － Support 2 port 8bit, clock frequency up to 150MHz/port － Support JEIDA and VESA LVDS format mapping － Support pair swap and P/N swap function － SSCG max: +-3%, 200KHz

⚫ Audio － Output: IIS － Embedded Audio DAC － Embedded headphone AMP

⚫ Scaling － Fully programmable zoom ratios － Independent horizontal/vertical scaling

⚫ Embedded OSD － Support multi-color RAM font, 1,2 and 4-bit per pixel － Embedded 32KB SRAM dynamically stores OSD char and font － Maximum 5 windows － 256 words x 24bits palette － Programmable blinking effects for each character － Support power on logo display

⚫ Video Process － sRGB/Adobe/DCI-P3 compliance － EOTF LUT (2084) decoder － Color mapping BT.2407 － Tone mapping BT.2390 － Support Color Enhancement － Support CGM － Support PUC (Panel Uneven Calibration) － Support LTI/Peaking function Sharpness － Support 17x17x17 3D LUT － Support White Balance － Support Gamma and dither

⚫ Support Adaptive sync, Free-Sync and G-sync function

⚫ Support ODC (Over drive) function

⚫ Built-in pattern generator for factory mode

⚫ Support shadow EDID inside Chip

⚫ Support External Max 128Mbit Flash is shared for HDCP Key, EDID, LUT and chip configuration

⚫ Support 32bit Internal MCU

⚫ High resolution PWM output, and wide range selectable PWM frequency

⚫ 27MHz Crystal Oscillator

⚫ Power Supply: 3.3V/1.1V

⚫ Power consumption: Max 2.0W

⚫ Package: LQFP128 16*16mm2
